Plug-in battery system · Energy storage
SPS 2.4 / 5.12

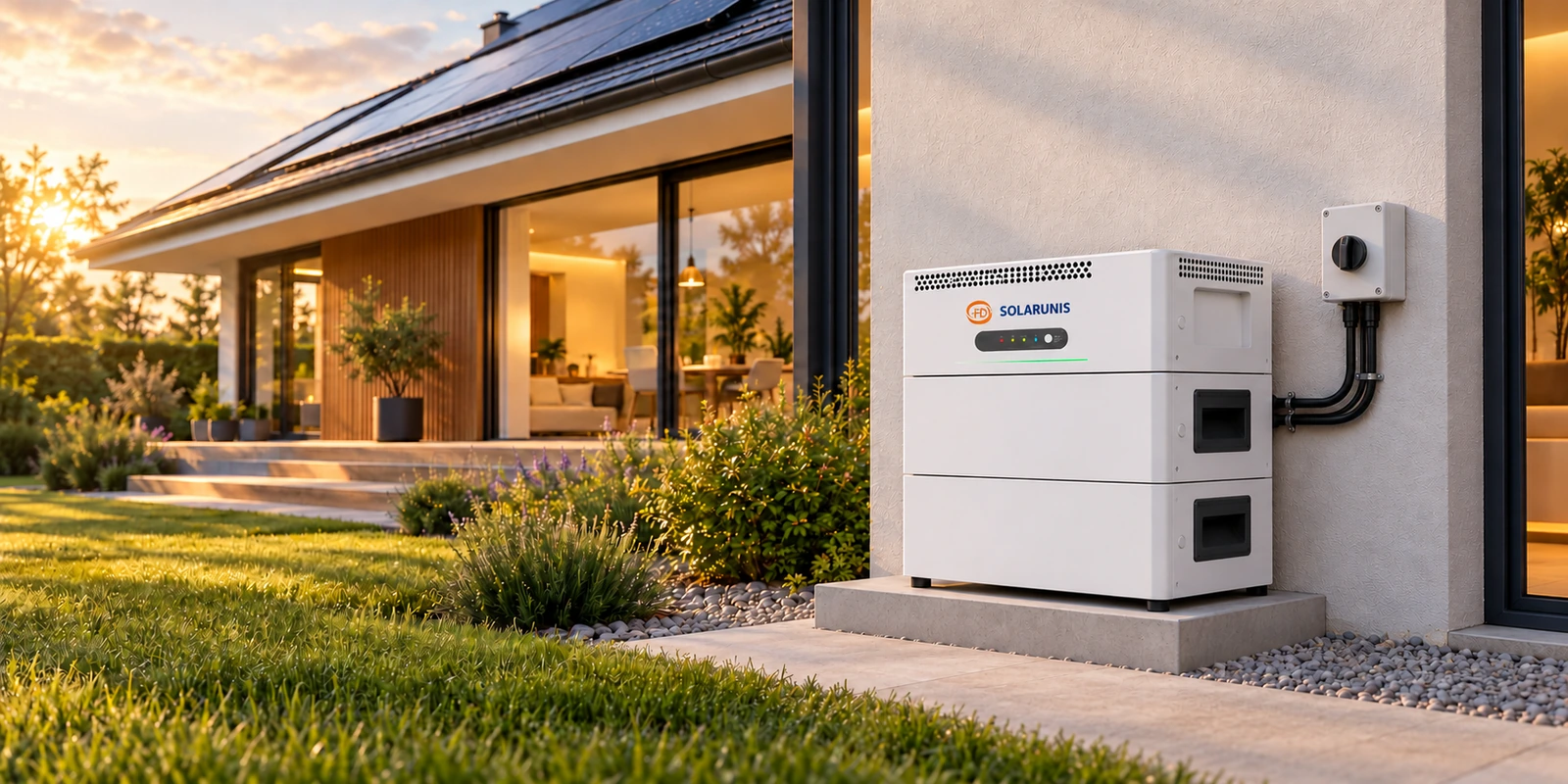

A compact Solarunis storage system with 2.4 kW rated backup output, 0.8 kW grid output and 5.12 kWh battery capacity.
2.4 kW backup · 0.8 kW grid output2 MPPT inputs
Technical overview
Designed around the architecture.
Typical use: residential self-consumption and backup. Final system design must follow the target market's electrical requirements.
Confirm the battery configuration, installation requirements, market-specific certificates and warranty terms with Solarunis before specification.
- Grid input / output power
- 2.4 kW input / 0.8 kW output
- Grid input / output current
- 10.5 A input / 3.48 A output
- Backup output
- 2.4 kW rated · 4.8 kVA for 10 s
- PV input
- 2 MPPT · 2 × 1000 W max · 10–100 VDC · 20 A/channel
- Battery
- 5.12 kWh · 51.2 V
- Hybrid module
- 480 × 298 × 130 mm · 11.2 kg · IP65
- Battery modules
- 480 × (298 × 2) × 130 mm · 26.5 × 2 kg
- Interfaces
- Bluetooth · Wi-Fi · LED display · European socket
Documentation
Technical documentation.
Documents for your project
The Technical Data Sheet is available below. Confirm installation requirements, market-specific certificates and warranty terms with Solarunis for your project.
Open TDSProject support
