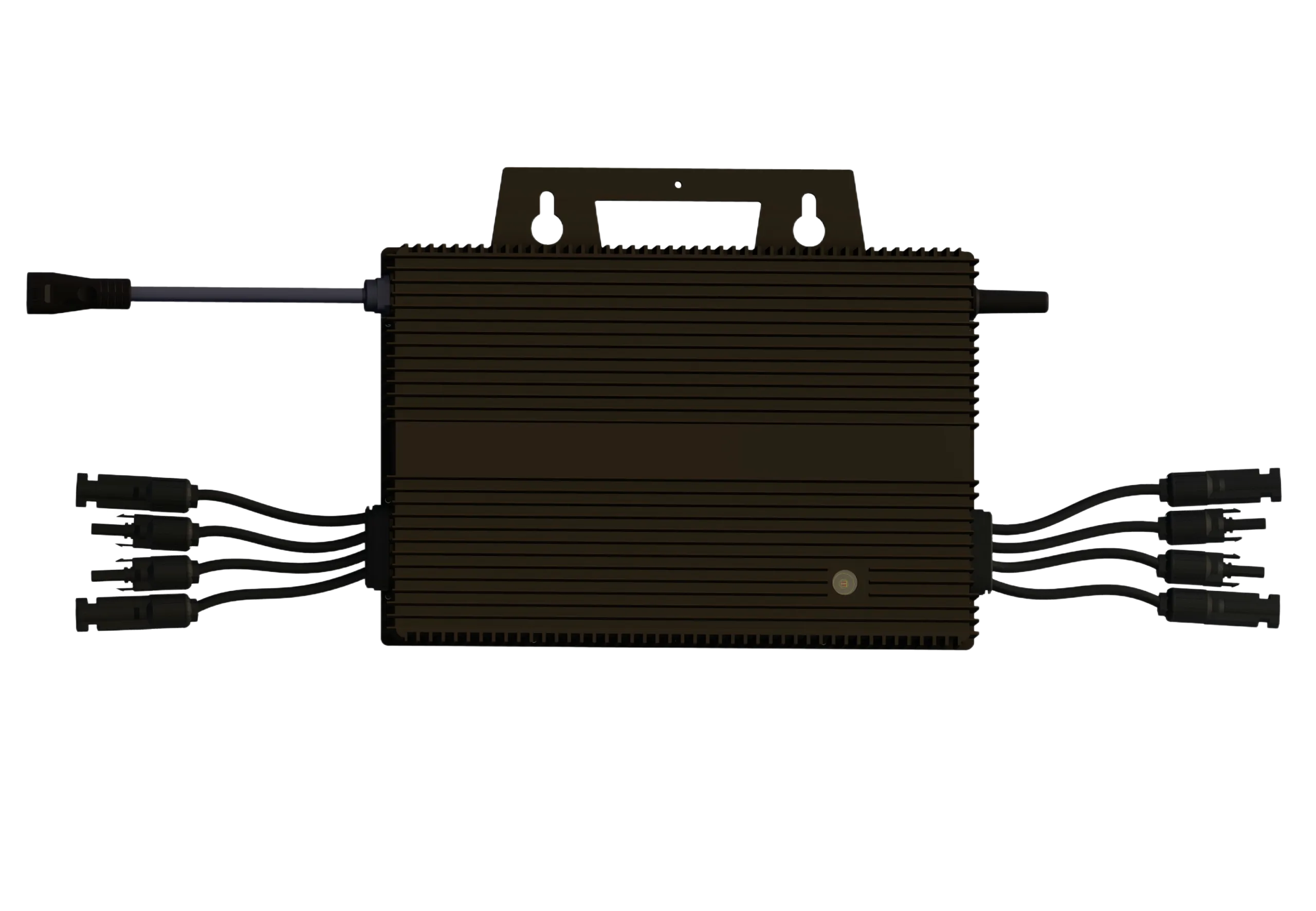

Four channel FDE microinverter with 2000 W continuous output.
2000 W4 PV inputs
Technical overview
Designed around the architecture.
Typical use: larger residential and distributed commercial arrays. Final system design must follow the target market's electrical requirements.
Specifications are taken from the Solarunis Technical Data Sheet (TDS) for this model range.
Continuous output
2000 W
PV inputs
4
Recommended module power
580–640 Wp per channel
Operating input voltage
16–60 V
Maximum input voltage
65 V
Maximum input current
15 A per channel
Nominal output current
9.04 A
Units per 30 A branch
3 units
Dimensions (W × H × D)
329.5 × 265.9 × 35 mm
Weight
4.09 kg
FDE platform
Shared across the range.
Peak efficiency97%
MPPT efficiency99.5%
EnclosureIP67
CoolingNatural convection
Confirm grid-code requirements, branch-circuit sizing and certificates covering the exact model and target market with Solarunis before installation.
Documentation
Technical documentation.
Documents for your project
The Technical Data Sheet is available below. Confirm installation requirements, market-specific certificates and warranty terms with Solarunis for your project.
